Transport Barges

Transport barges

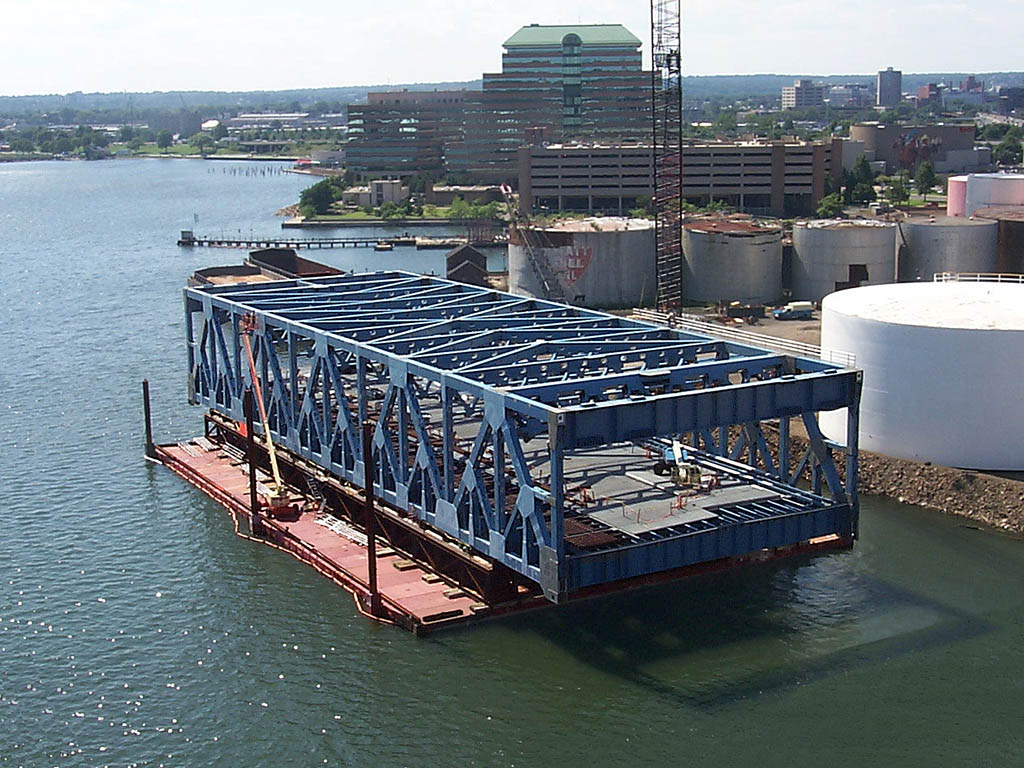

Ferries, lighters, supply barges and other load transport assemblies are easily constructed with portable Flexifloat® modular barges and available attachments.
These shallow-draft assemblies are normally propelled by a two-drum wireline systems or towed by tug or workboat. They provide a simple, quick and economical method of moving all types of construction material, vehicles and heavy equipment across streams, lakes and other limited-access marine areas.

Transports may be equipped with standard Flexifloat® ramp attachments to facilitate drive on/off loading of wheeled and tracked vehicles. Raked attachment modules can also be utilized to minimize current effects and enhance navigation.

Questions? talk to our application engineers.

SpecificationsDepthWidthLengthWeightSpud
Ft. (effective)Lbs.Options
H-503.87.530.014,50012-in. dia20-in.dia
15.07,900
S-505.010.040.027,00020-in. dia
20.014,700
S-707.010.040.033,00024-in. dia24-in. sq.
20.018,000
SpecificationsDepthWidthLengthWeightSpud
M. (effective)Kg.Options
H-501.172.299.146,577305-mm. dia.508-mm. dia.
4.573,583
S-501.523.0512.212,247508-mm. dia.
6.16,668
S-702.133.0512.214,969610-mm. dia.610-mm. sq.
6.18,165
